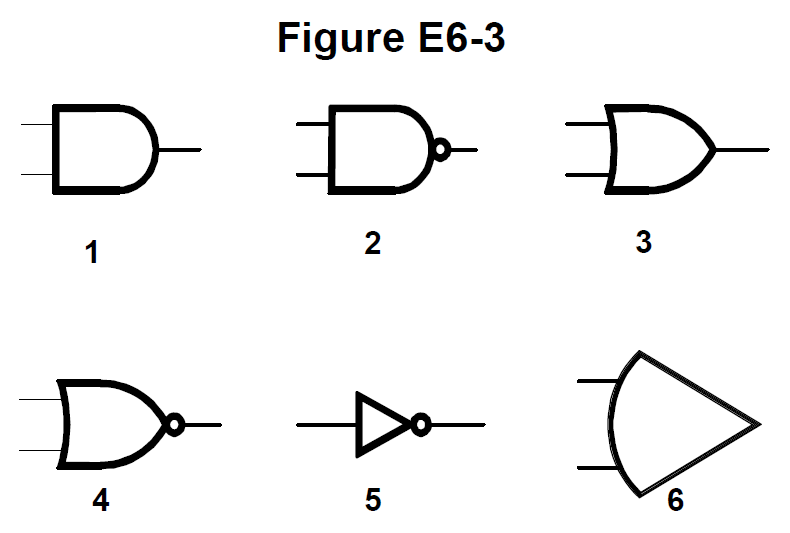

In Figure E6-3, which is the schematic symbol for the NOT operation (inversion)?
Answer5
In Figure E6-3, symbol 5 is the NOT or inverter function.
