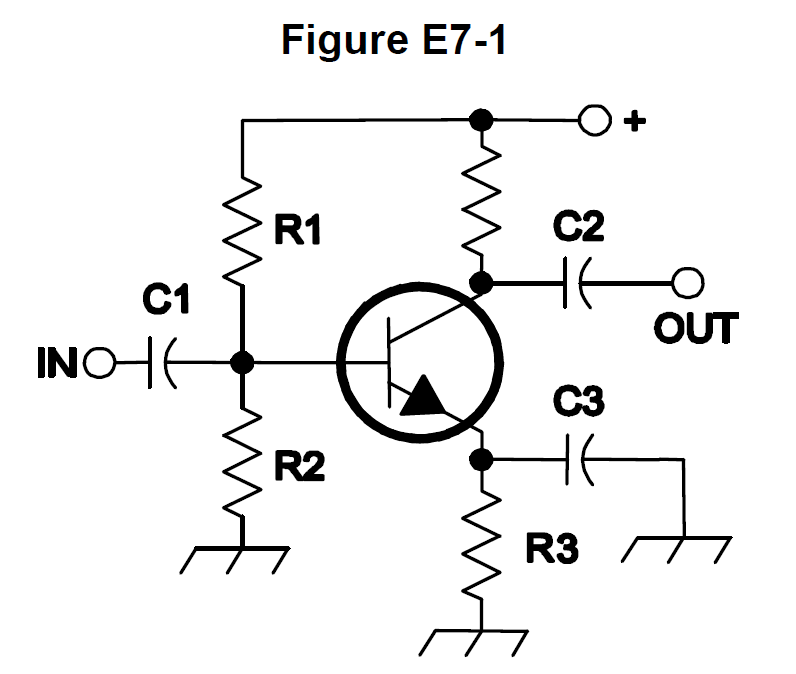

What type of amplifier circuit is shown in Figure E7-1?
AnswerCommon emitter
The transistor stage shown in Figure E7-1 is a common-emitter amplifier.
Amateur Extra · FCC ELEMENT 4
E7B12
Amateur Extra · FCC Element 4 · answer reveals automatically
Amateur Extra · FCC Element 4 · answer reveals automatically
The transistor stage shown in Figure E7-1 is a common-emitter amplifier.
