EXTRAE7 · Practical Circuits
E7D08

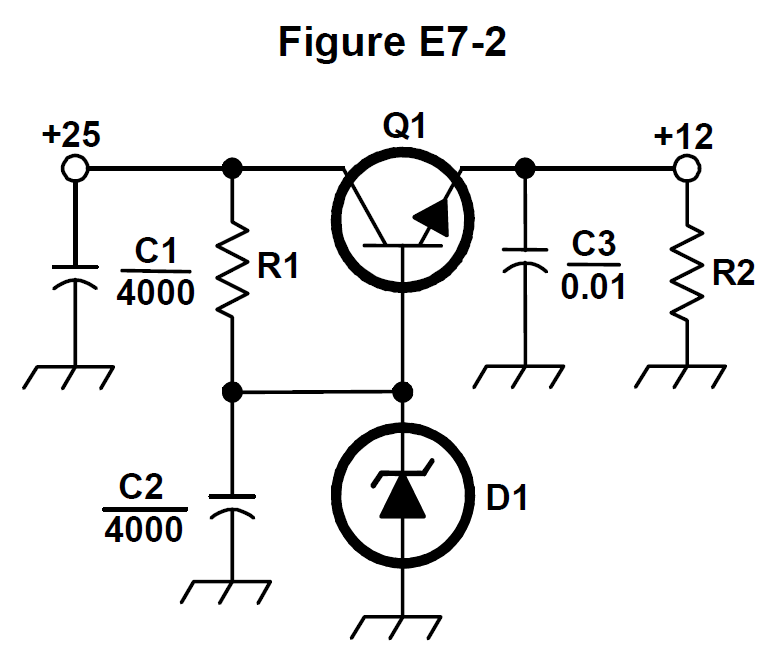

What type of circuit is shown in Figure E7-2?

Figure for E7D08
AnswerLinear voltage regulator

The circuit in Figure E7-2 is a linear regulator using a continuously controlled transistor.
