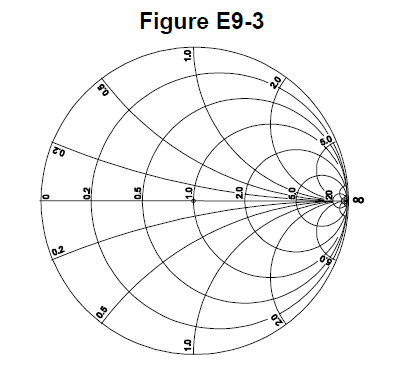

On the Smith chart shown in Figure E9-3, what is the name for the large outer circle on which the reactance arcs terminate?
AnswerReactance axis
On the Smith chart in Figure E9-3, the reactance arcs terminate at the large outer circle called the reactance axis.
